Pen Probe Single-Point
Hisco #:SPP1-15078
MFG #:SPP1
$
Manufacturer Estimated Lead Time When Not In Stock: 28 days
Minimum Order QTY: 1
Item must be ordered in multiples of 1
Item must be ordered in multiples of 1

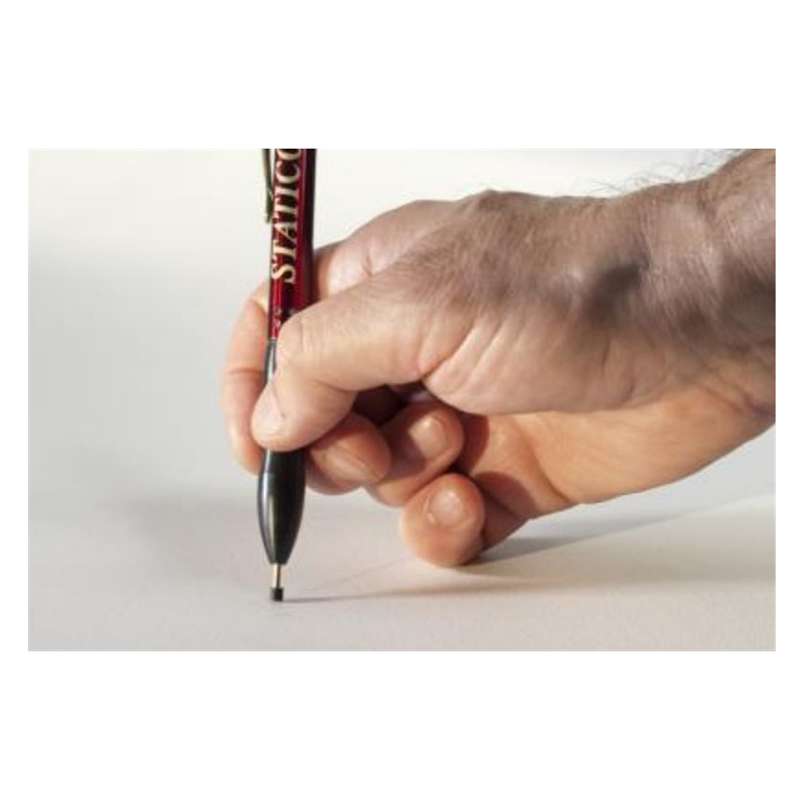

The ESD Systems SPP1 is a Single Point Pen Probe
ESD Systems SPP1 Features:- Uses spring loaded electrodes with conductive rubber boots to ensure intimate contact with hard/irregular surfaces and reduce contact resistance
- Can be used for measuring volume resistance of small planar material sample per the requirements of ANSI/ESDA 11.12
- Operates with power input from the megohm meters at 10 to 100 volts
- Made in the United States of America
- Brand Name: Desco
- Probe End Colors: Black
- Weight: Less than 2 oz(50 g)
- Probe Body Diameter: 0.50” (12.7mm)
- Contact Boot Material: Conductive Rubber
Product Description
Technical Information
SDS/TDS
Back to top
Product Description
The ESD Systems SPP1 is a Single Point Pen Probe
ESD Systems SPP1 Features:- Uses spring loaded electrodes with conductive rubber boots to ensure intimate contact with hard/irregular surfaces and reduce contact resistance
- Can be used for measuring volume resistance of small planar material sample per the requirements of ANSI/ESDA 11.12
- Operates with power input from the megohm meters at 10 to 100 volts
- Made in the United States of America
- Brand Name: Desco
- Probe End Colors: Black
- Weight: Less than 2 oz(50 g)
- Probe Body Diameter: 0.50” (12.7mm)
- Contact Boot Material: Conductive Rubber
Technical Information
Brand: ESD Systems
Weight: 0.07
Country Of Origin: US
Harmonized Code: 9030.33.0080
