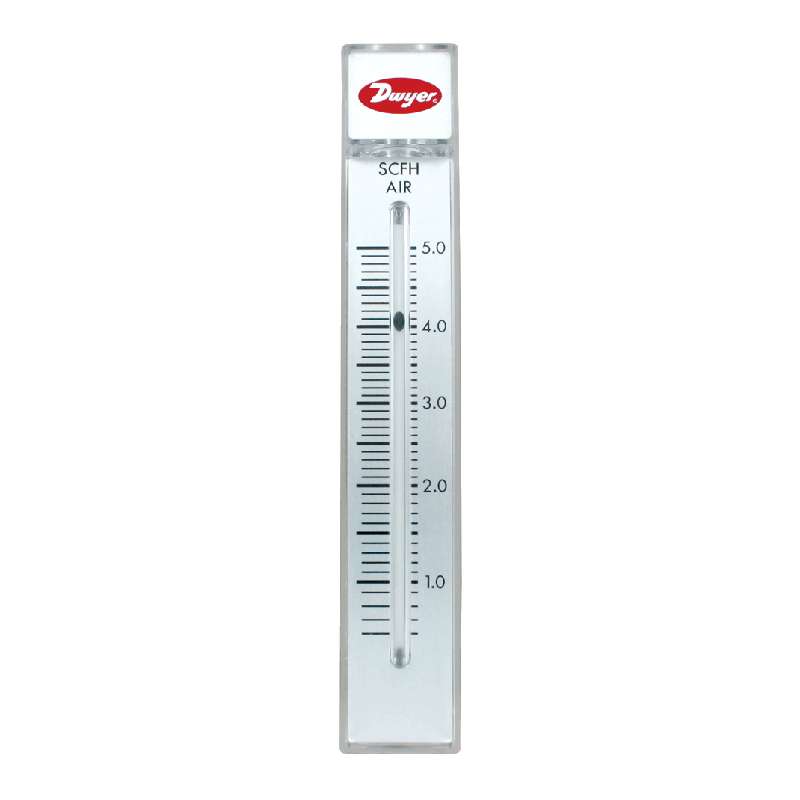

Flowmeter, Range .5-5 SCFH Air +/-5% Accuracy

The Dwyer RMB-49 Series RM Rate-Master Polycarbonate Flowmeters are a line of general-use, direct-reading precision flowmeters suitable for both gas and liquid applications. This Series consists of 2" (51 mm), 5" (127 mm) and 10" (254 mm) scales that can be panel or surface-mounted with optional precision metering valves. Within a given Series, the Rate-Master flowmeter bodies can be instantly interchanged, allowing the piping to remain undisturbed, interchangeability of the ranges, and easy cleaning.

Applications:

• Medical equipment
• Air samplers
• Gas analyzers
• Pollution monitors
• Chemical injectors
• Cabinet purging

• Eliminate the need for troublesome conversions with direct reading scales
• Reduce installation damage and cost due to stainless steel backbone that absorbs piping torque
• Long operation life with durable, shatter-proof polycarbonate body
• High repeatability enabled by precision injection molding around a precision tapered pin
• Increased reading accuracy with special integral flow guides that stabilize float movement
• Save time with instantaneous flow reading from scale graduations on both sides of the indicating tube
