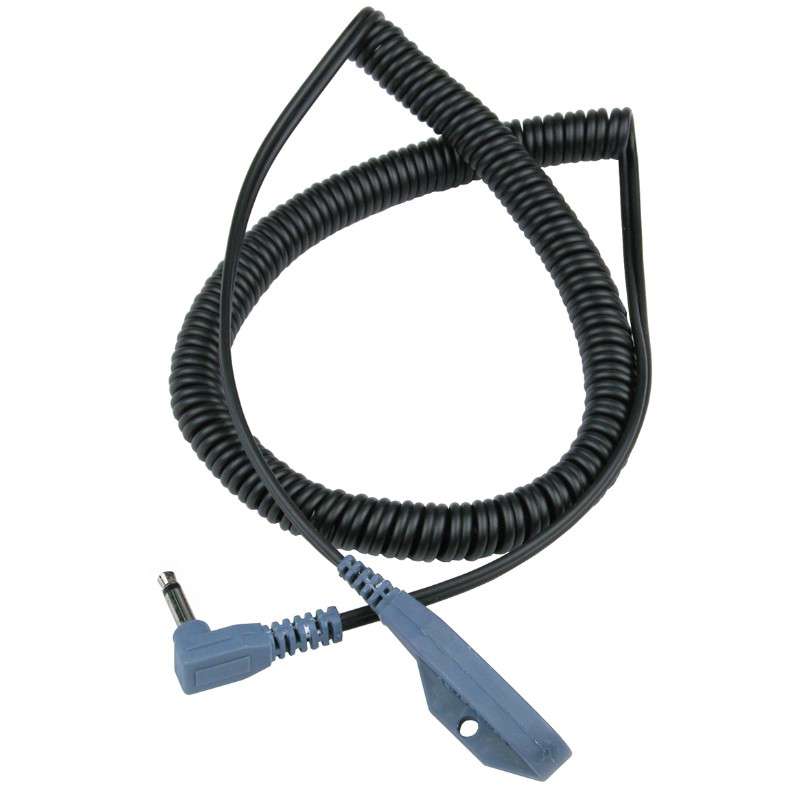

Dual Snap-One Cord, 12ft With 4mm Snaps, Right Angle Plug
Hisco #:19696-15062
MFG #:19696
$
Manufacturer Estimated Lead Time When Not In Stock: 7 days
Minimum Order QTY: 1
Item must be ordered in multiples of 1
Item must be ordered in multiples of 1
Desco 19696 Facts:
- Patented (US patents 6,052,053 and 6,205,408) Dual Wire Coil Cord provides redundancy Even if one conductor is severed,, operator has reliable path-to-ground with other wire
- Use with resistive loop technology continuous monitor Continuously verifies the proper resistance to ground of the operator
- Custom manufactured right angle mono-plug Reduces chance of accidental disconnects, providing more secure ground connection
- One Megohm Series Resistor To protect operator from accidental contact with equipment line voltage.
- UL listed Independent review of the adequacy of the product's design.
- 28 gauge wire
- 3.5mm phono plug connector
- Superior resistor connection strain relief Superior reliability. Greatly exceeds ESD S1.1 Bending Life Test. Tested at over 200,000 cycles vs. the 16,000 requirement
- Single (Snap-One™) snap head Allows operators to quickly and easily attach and detach the cord from the wristband
- Park-it feature on Snap-One™ Provides convenient park station for cord when not in use. Simply insert phono plug into hole to allow for hanging cord at workbench
- Superior warranty
Product Description
Technical Information
SDS/TDS
Back to top
Product Description
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Desco 19696 Facts:
- Patented (US patents 6,052,053 and 6,205,408) Dual Wire Coil Cord provides redundancy Even if one conductor is severed,, operator has reliable path-to-ground with other wire
- Use with resistive loop technology continuous monitor Continuously verifies the proper resistance to ground of the operator
- Custom manufactured right angle mono-plug Reduces chance of accidental disconnects, providing more secure ground connection
- One Megohm Series Resistor To protect operator from accidental contact with equipment line voltage.
- UL listed Independent review of the adequacy of the product's design.
- 28 gauge wire
- 3.5mm phono plug connector
- Superior resistor connection strain relief Superior reliability. Greatly exceeds ESD S1.1 Bending Life Test. Tested at over 200,000 cycles vs. the 16,000 requirement
- Single (Snap-One™) snap head Allows operators to quickly and easily attach and detach the cord from the wristband
- Park-it feature on Snap-One™ Provides convenient park station for cord when not in use. Simply insert phono plug into hole to allow for hanging cord at workbench
- Superior warranty
Technical Information
Brand: Desco
Weight: 0.11
Country Of Origin: US
Harmonized Code: 8544.49.1500
UPC Code: NO UPC
