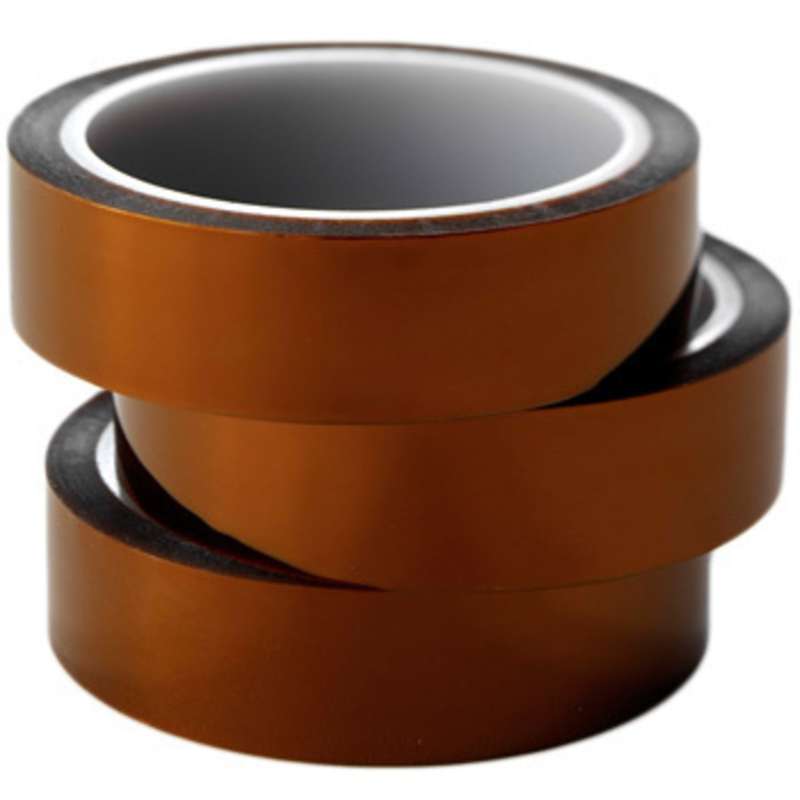

Pressure Sensitive Kapton® 350° Hi-Temp 2.5 Mil Polyimide Tape with Acrylic Adhesive, 1" x 36yd
Hisco #:1652-10
MFG #:1652-10
$
Manufacturer Estimated Lead Time When Not In Stock: 8 days
Minimum Order QTY: 1
Item must be ordered in multiples of 1
Item must be ordered in multiples of 1
The Dadas Tapes 1652-10 is a pressure sensitive, amber color, polyimide film tape with an acrylic adhesive system.
Dadas Tapes 1652-10 Features:- Excellent mechanical and electrical properties
- Excellent dielectric properties
- High temperature resistance
- High conformability/solvent resistance
- Outstanding cut through resistance
- Impact and abrasion resistant
- Acrylic adhesive has an excellent shelf life
- Increased adhesion and tack properties at elevated temperatures
- Roll length: 36 yards
- Roll width: 1"
- Core I.D.: 3"
- Backing type: Polymide Film
- Backing color: Amber
- Backing thickness: .001"e
- Adhesive system: Acrylic
- Adhesive thickness: .0015"
- Adhesion: 30 oz/in.
- Tensile strength: 30 lb/in.
- Elongation: 50%
- Operating temperature range: -20°F to 350°F
- Dielectric strength: 7000 V
- Insulation class (°C): 155
- Polymide backing meets MIL-P-46112B
Product Description
Technical Information
SDS/TDS
Back to top
Product Description
The Dadas Tapes 1652-10 is a pressure sensitive, amber color, polyimide film tape with an acrylic adhesive system.
Dadas Tapes 1652-10 Features:- Excellent mechanical and electrical properties
- Excellent dielectric properties
- High temperature resistance
- High conformability/solvent resistance
- Outstanding cut through resistance
- Impact and abrasion resistant
- Acrylic adhesive has an excellent shelf life
- Increased adhesion and tack properties at elevated temperatures
- Roll length: 36 yards
- Roll width: 1"
- Core I.D.: 3"
- Backing type: Polymide Film
- Backing color: Amber
- Backing thickness: .001"e
- Adhesive system: Acrylic
- Adhesive thickness: .0015"
- Adhesion: 30 oz/in.
- Tensile strength: 30 lb/in.
- Elongation: 50%
- Operating temperature range: -20°F to 350°F
- Dielectric strength: 7000 V
- Insulation class (°C): 155
- Polymide backing meets MIL-P-46112B
Technical Information
Brand: Dadas Tapes
Weight: 0.84
Country Of Origin: US
Harmonized Code: 3920.92.0000
UPC Code: No UPC
