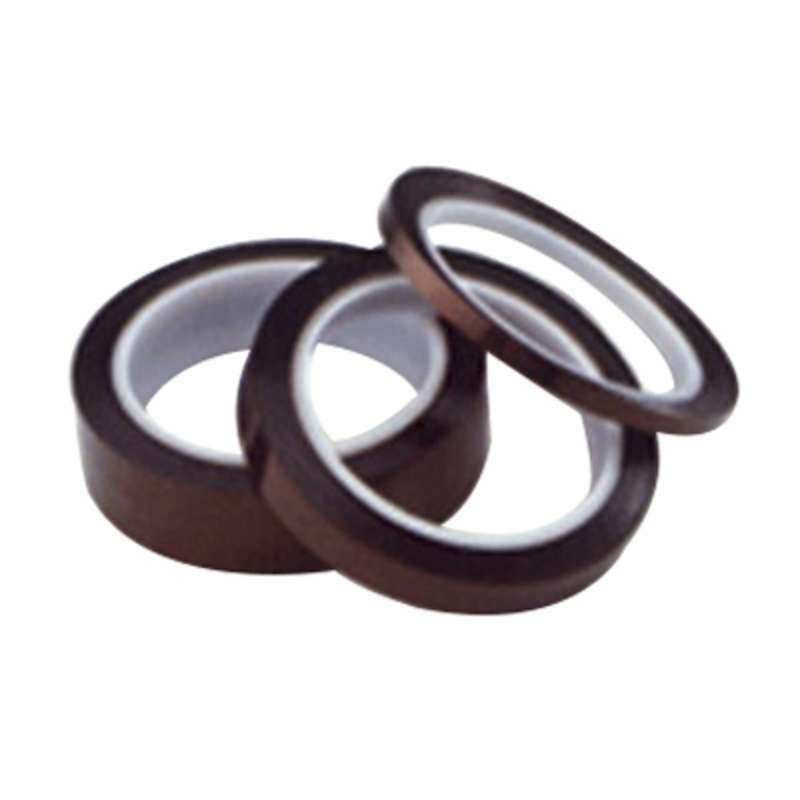

CGS 8258 Polymide Tape, 5/16 in x 36 yd x 2.5 mil, Amber
Hisco #:8258516-12719
MFG #:8258516
$
Manufacturer Estimated Lead Time When Not In Stock: 7 days
Minimum Order QTY: 1
Item must be ordered in multiples of 1
Item must be ordered in multiples of 1
The CGS Tape 8258516 tape consists of a polyimide film and silicone adhesive designed for high temperature masking applications, including the protection of printed circuit board gold finger contacts during wave soldering, It is use in electrical insulation applications meeting class H requirements.
The CGS Tape 8258516 Features:- Thin and conformable enabling masking of uneven surfaces
- Wide operating temperature range up to 500 °F
- Excellent electrical insulation
- Removes cleanly without adhesive residue after exposure to heat/chemical
- Series: 8258
- Product Type: Film Tape
- Backing Material: Polyimide Film
- Adhesive Material: Silicone
- Material Category: Plastic
- Color: Amber
- Primary Color: Amber
- Width: 5/16in
- Length: 36yd
- Thickness: 2.5mil
- Adhesion Strength: 25oz/in
- Tensile Strength: 30lb/in
- Elongation at Break: >55%
- Resistance Properties: Insulation Resistant Temperature Resistant Acid Resistant Oil Resistant Solvent Resistant
- Applications: Mask for Protection of Gold Fingers of Printed Circuit Boards During Wave Solder or Solder Dip Process, Release Surface in Fabrication of Parts Cured at Elevated Temperatures, Widely used for Electrical Insulation on Transformer, Motor, Coils, PCB Making
- Maximum Operating Temperature: +500°F
Product Description
Technical Information
