Belden

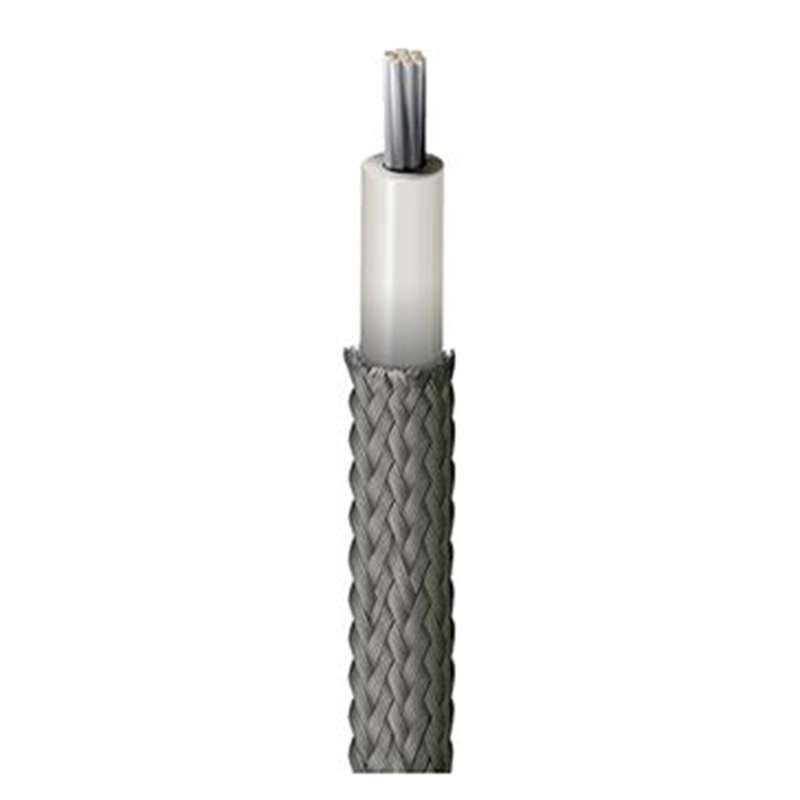

Belden® 32414500-9 Hook-up/Lead Wire, 14 AWG, 600 V, 0.167 in x 500 ft, White
Hisco #:32414500-9-12201
MFG #:32414500-9
$
Manufacturer Estimated Lead Time When Not In Stock: 70 days
Minimum Order QTY: 500
Item must be ordered in multiples of 500
Item must be ordered in multiples of 500
The Belden 32414500-9 is a Series 324 silicone rubber wire .
The Belden 32414500-9 Features:- Series: 324
- Length: 500ft
- Number of Cores: 1
- Outer Diameter: 0.167in
- Screened or Unscreened: Screened
- Sheath Material: Silicone with Lacquered Glass
- Voltage Rating: 600V
- Core Strands: 7/12
- Conductor Material: Tinned Copper
- Insulation Material: Silicone Rubber
- Material Category: Rubber
- American Wire Gauge: 14AWG
- Insulation Thickness: 0.030in
- Screen Type: Braid
- Sheath Color: White
- Primary Color: White
- Cable Shape: Single Core
- Standards Met: UL AWM Style 3071, CSA Type SEW-2, RoHS Compliant
- Number of Strands: 7
- Size of Strands: 22AWG
- Maximum Operating Temperature: 200°C
Product Description
Technical Information
Back to top
Product Description
The Belden 32414500-9 is a Series 324 silicone rubber wire .
The Belden 32414500-9 Features:- Series: 324
- Length: 500ft
- Number of Cores: 1
- Outer Diameter: 0.167in
- Screened or Unscreened: Screened
- Sheath Material: Silicone with Lacquered Glass
- Voltage Rating: 600V
- Core Strands: 7/12
- Conductor Material: Tinned Copper
- Insulation Material: Silicone Rubber
- Material Category: Rubber
- American Wire Gauge: 14AWG
- Insulation Thickness: 0.030in
- Screen Type: Braid
- Sheath Color: White
- Primary Color: White
- Cable Shape: Single Core
- Standards Met: UL AWM Style 3071, CSA Type SEW-2, RoHS Compliant
- Number of Strands: 7
- Size of Strands: 22AWG
- Maximum Operating Temperature: 200°C
Technical Information
Brand: Belden
Weight: 0.026
$
Minimum Order QTY: 500
Item must be ordered in multiples of 500
Item must be ordered in multiples of 500
