BK Precision

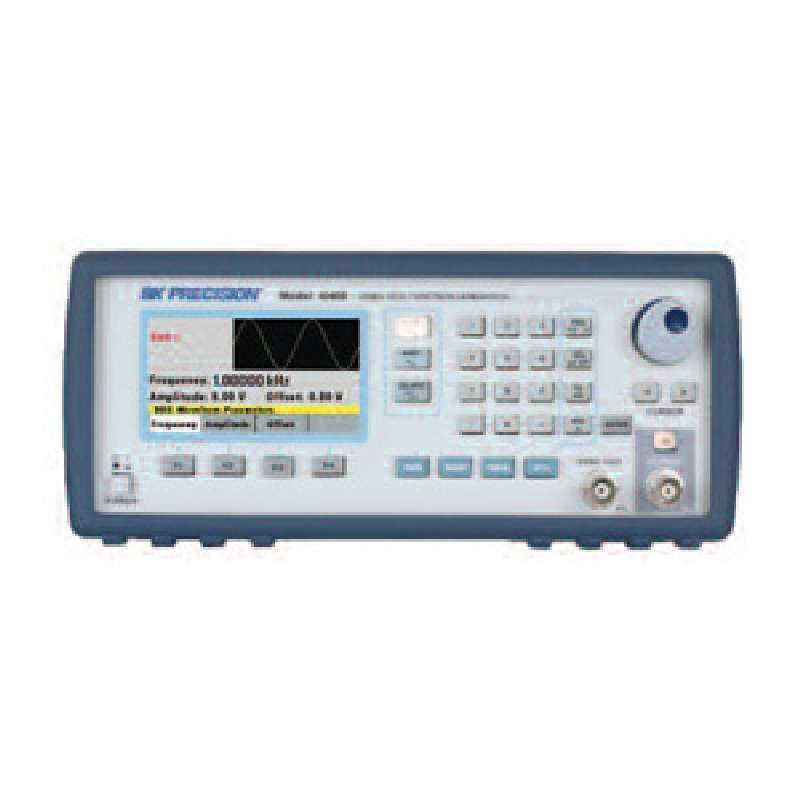

DDS Sweep/Function Generator and Frequency Counter 20MHz with Digital Display
Hisco #:4040B-65699
MFG #:4040B
$
Manufacturer Estimated Lead Time When Not In Stock: 30 days
Minimum Order QTY: 1
Item must be ordered in multiples of 1
Item must be ordered in multiples of 1
The BK Precision 4040B is a function generator with a minimum frequency (sinewave) of 0.01.
The BK Precision 4040B Features:- Sine, Square, Triangle, Pulse, and Ramp output
- Coarse and Fine tuning
- AM and FM modulation
- Burst operation
- External frequency counter to 30 MHz
- Linear and log sweep
- Variable duty cycle
- Variable DC offset
- cUL certified
- Product Type: DDS Function Generator
- Digital Amplitude and Offset: Yes
- Internal Linear and Log Sweep: Yes
- Variable Sweep: No
- Maximum Frequency (Sinewave): 20MHz
- Minimum Frequency (Sinewave): 0.01Hz
- Maximum Frequency (Square, Pulse and Arbitrary Waveform): 20MHz
- Minimum Frequency (Square, Pulse and Arbitrary Waveform): 0.01Hz
- Maximum Frequency (Triangle/Saw): 2MHz
- Minimum Frequency (Triangle/Saw): 0.01Hz
- Input Impedance: 1kΩ
- Output Impedance: 50Ω
- Interface Type: USB Type A to B
- Dimensions: 8.39 x 8.27 x 3.46in
- Width: 8.27in
- Height: 3.46in
- Model Number: 4040B
- Minimum Operating Temperature: +32°F
- Length: 8.39in
- Maximum Operating Temperature: +122°F
- Display Type: LCD
Product Description
Technical Information
Back to top
Product Description
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
The BK Precision 4040B is a function generator with a minimum frequency (sinewave) of 0.01.
The BK Precision 4040B Features:- Sine, Square, Triangle, Pulse, and Ramp output
- Coarse and Fine tuning
- AM and FM modulation
- Burst operation
- External frequency counter to 30 MHz
- Linear and log sweep
- Variable duty cycle
- Variable DC offset
- cUL certified
- Product Type: DDS Function Generator
- Digital Amplitude and Offset: Yes
- Internal Linear and Log Sweep: Yes
- Variable Sweep: No
- Maximum Frequency (Sinewave): 20MHz
- Minimum Frequency (Sinewave): 0.01Hz
- Maximum Frequency (Square, Pulse and Arbitrary Waveform): 20MHz
- Minimum Frequency (Square, Pulse and Arbitrary Waveform): 0.01Hz
- Maximum Frequency (Triangle/Saw): 2MHz
- Minimum Frequency (Triangle/Saw): 0.01Hz
- Input Impedance: 1kΩ
- Output Impedance: 50Ω
- Interface Type: USB Type A to B
- Dimensions: 8.39 x 8.27 x 3.46in
- Width: 8.27in
- Height: 3.46in
- Model Number: 4040B
- Minimum Operating Temperature: +32°F
- Length: 8.39in
- Maximum Operating Temperature: +122°F
- Display Type: LCD
Technical Information
Brand: BK Precision
Availability: In Stock
Weight: 4.705
Country Of Origin: IL
Harmonized Code: 8501.31.8000
UPC Code: 817050404029
$
