BK Precision
High Power Programmable DC Power Supply
Hisco #:PVS10005-65699
MFG #:PVS10005
$
Manufacturer Estimated Lead Time When Not In Stock: 112 days
Minimum Order QTY: 1
Item must be ordered in multiples of 1
Item must be ordered in multiples of 1

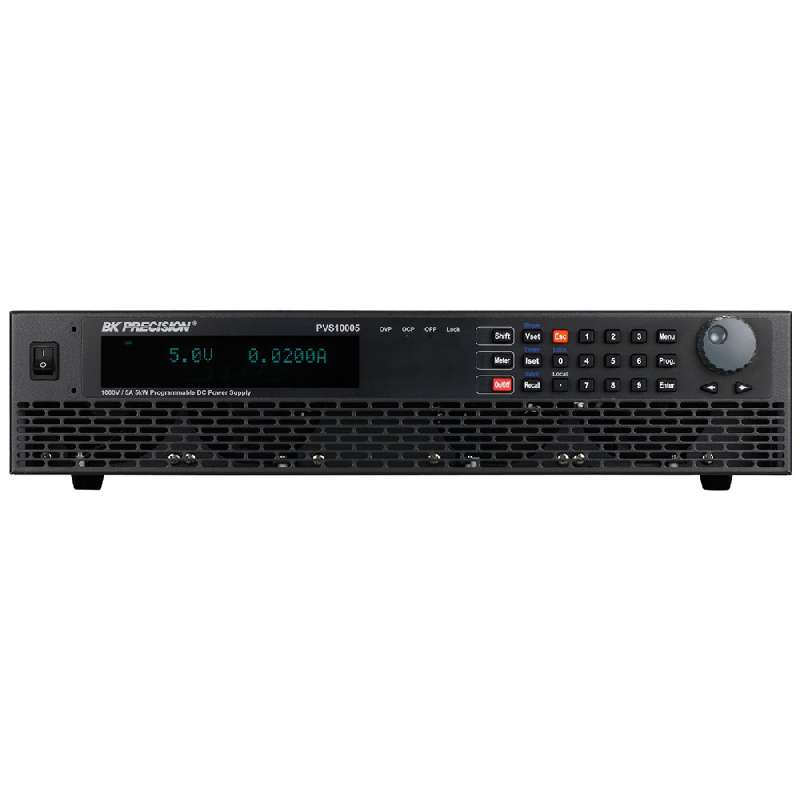

The BK Precision PVS10005 is a high power programmable DC power supply. Offering clean output power up to 5.1kW, excellent regulation, and fast response time characteristics in a 2U package.BK Precision PVS10005 Features:BK Precision PVS10005 Specifications:
- Well suited for both bench use and ATE systems integration, R&D, design verification, product test, and high voltage testing
- The low noise characteristics make this instrument ideal for motor inverter testing as well
- When operated with the SAS software these power supplies can be used for solar array testing applications
- Many useful features such as high programming resolution, multiple remote interfaces for test systems, and a built-in Solar Array Simulator function to generate PV (photovoltaic) I-V curves
- Output Voltage: 0 – 1000V
- Output Current: 0 – 5A
- Max Output Power: 5000W
- Max Rated Input Power: 5800VA
- Line Regulation Voltage: 100mV
- Line Regulation Current: 2.5mA
- Load Regulation Voltage: 100mV
- Load Regulation Current: 5mA
- Programming Accuracy Voltage: 700mV
- Transient Response Time: ≤0.5ms
- OVP Adjustment Range: 5 – 1100V
- OVP Accuracy: 10V
- OCP Accuracy: 50mA
- Dimensions: 16.53 x 3.46 x 20.94”
- Weight: 32.18lbs
Product Description
Technical Information
Back to top
Product Description
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
The BK Precision PVS10005 is a high power programmable DC power supply. Offering clean output power up to 5.1kW, excellent regulation, and fast response time characteristics in a 2U package.BK Precision PVS10005 Features:BK Precision PVS10005 Specifications:
- Well suited for both bench use and ATE systems integration, R&D, design verification, product test, and high voltage testing
- The low noise characteristics make this instrument ideal for motor inverter testing as well
- When operated with the SAS software these power supplies can be used for solar array testing applications
- Many useful features such as high programming resolution, multiple remote interfaces for test systems, and a built-in Solar Array Simulator function to generate PV (photovoltaic) I-V curves
- Output Voltage: 0 – 1000V
- Output Current: 0 – 5A
- Max Output Power: 5000W
- Max Rated Input Power: 5800VA
- Line Regulation Voltage: 100mV
- Line Regulation Current: 2.5mA
- Load Regulation Voltage: 100mV
- Load Regulation Current: 5mA
- Programming Accuracy Voltage: 700mV
- Transient Response Time: ≤0.5ms
- OVP Adjustment Range: 5 – 1100V
- OVP Accuracy: 10V
- OCP Accuracy: 50mA
- Dimensions: 16.53 x 3.46 x 20.94”
- Weight: 32.18lbs
Technical Information
Brand: BK Precision
Weight: 41.05
Country Of Origin: TW
Harmonized Code: 8504.40.7018
$
