Test Bench Series High Performance DMM 0.5% Accuracy

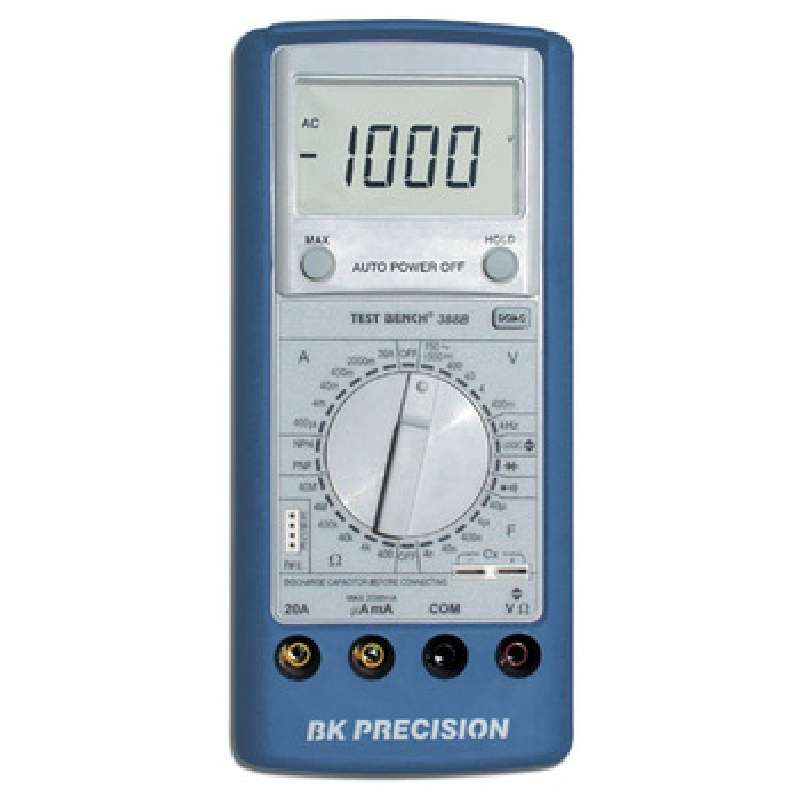

The BK Precision 388B is a digital multimeter with a minimum ac current measurement of 400.

• Resistance measurement
• Frequency measurement
• Diode check
• Audible continuity
• All current ranges fused
• Auto power off
• Ruggedized case
• CATIII


• Product Type: Digital Multimeter
• Functions Measured: AC Voltage DC Voltage Resistance Capacitance AC Current DC Current Frequency Duty Cycle
• Display Type: LCD
• Power Source: Battery
• Maximum AC Current Measurement: 20A
• Minimum AC Current Measurement: 400mA
• Maximum AC Voltage Measurement: 750V
• Minimum AC Voltage Measurement: 400mV
• Maximum DC Current Measurement: 20A
• Minimum DC Current Measurement: 400mA
• Maximum DC Voltage Measurement: 1000V
• Minimum DC Voltage Measurement: 400mV
• Maximum Resistance Measurement: 40MΩ
• Minimum Resistance Measurement: 400Ω
• Maximum Capacitance Measurement: 40µF
• Minimum Capacitance Measurement: 4nF
• Best AC Current Accuracy: ±3.5%
• Best AC Voltage Accuracy: ±1.5%
• Best DC Current Accuracy: ±3%
• Best DC Voltage Accuracy: ±0.5%
• Best Resistance Measurement Accuracy: ±2%
• Best Capacitance Measurement Accuracy: ±3%
• AC Current Measurement Resolution: 10mA
• AC Voltage Measurement Resolution: 1V
• DC Current Measurement Resolution: 10mA
• DC Voltage Measurement Resolution: 1V
• Resistance Measurement Resolution: 10kΩ
• Capacitance Resolution: 1nF
• Battery Type: 9 V Battery
• Safety Category: CAT III 1000 V
• Dimensions: 1.57 x 3.5 x 7.8in
• Safety Category Level: CAT III
• Width: 3.5in
• Minimum Operating Temperature: +32°F
• Height: 7.8in
• Length: 1.57in
• Model Number: 388B
• Maximum Operating Temperature: +122°F
• Safety Category Voltage: 1000V
