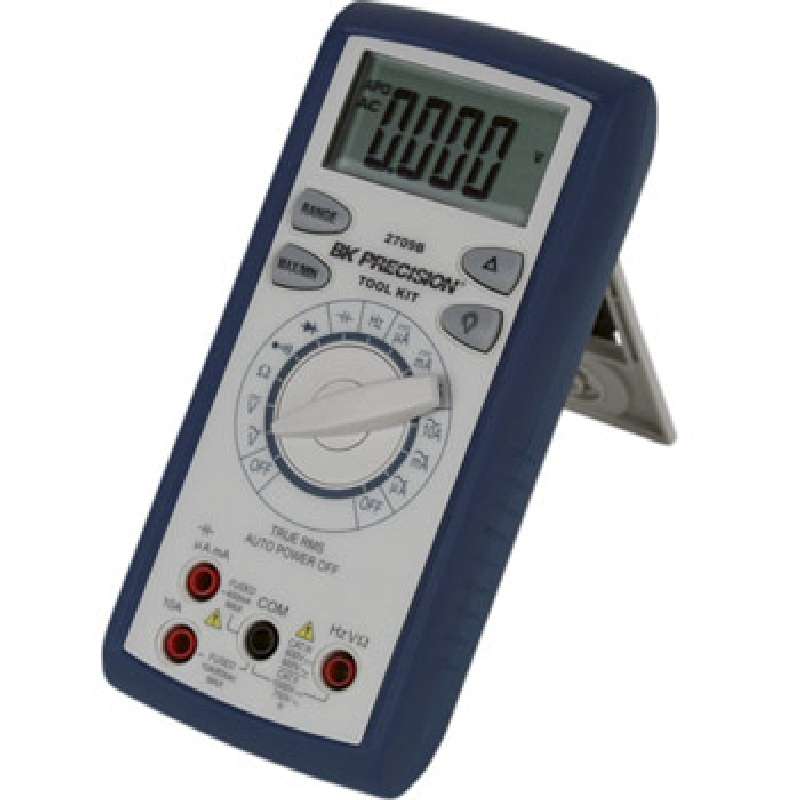

Auto Ranging Digital Multimeter with True RMS, Measures Resistance Values up to 66 MegOhms

The BK Precision 2709B is a digital multimeter with a minimum ac current measurement of 660.

• Magnetic hanger
• One-handed operation
• True RMS
• Large easy-to-read LCD with backlight
• Auto/manual ranging
• Auto power off
• DC voltage to 1 V
• Measures up to 1 A
• AC voltage to 75 V
• Resistance to 66 MΩ
• Capacitance to 66 mF
• Frequency counter to 66 MHz
• Diode test
• Continuity test


• Product Type: Digital Multimeter
• Functions Measured: AC Voltage DC Voltage Resistance Diode Check AC Current DC Current Continuity Frequency Capacitance
• Display Type: LCD
• Power Source: Battery
• Maximum AC Current Measurement: 10A
• Minimum AC Current Measurement: 660mA
• Maximum AC Voltage Measurement: 750V
• Minimum AC Voltage Measurement: 660mV
• Maximum DC Current Measurement: 10A
• Minimum DC Current Measurement: 660µA
• Maximum DC Voltage Measurement: 1000V
• Minimum DC Voltage Measurement: 660mV
• Maximum Resistance Measurement: 66MΩ
• Minimum Resistance Measurement: 660Ω
• Maximum Capacitance Measurement: 66mF
• Minimum Capacitance Measurement: 6.6nF
• Best AC Current Accuracy: ±3.5%
• Best AC Voltage Accuracy: ±2%
• Best DC Current Accuracy: ±3%
• Best DC Voltage Accuracy: ±0.5%
• Best Resistance Measurement Accuracy: ±3.5%
• Best Capacitance Measurement Accuracy: ±5%
• AC Current Measurement Resolution: 10mA
• AC Voltage Measurement Resolution: 1V
• DC Current Measurement Resolution: 10mA
• DC Voltage Measurement Resolution: 1V
• Resistance Measurement Resolution: 10kΩ
• Capacitance Resolution: 10µF
• Battery Type: 9 V Battery
• Safety Category: CAT III 600 V CAT II 1000 V CAT II 750 V
• Dimensions: 165 x 78 x 42.5mm
• Safety Category Level: CAT III CAT II CAT II
• Width: 78mm
• Minimum Operating Temperature: 0°C
• Height: 42.5mm
• Length: 165mm
• Model Number: 2709B
• Maximum Operating Temperature: +50°C
• Safety Category Voltage: 600 1000 750V
