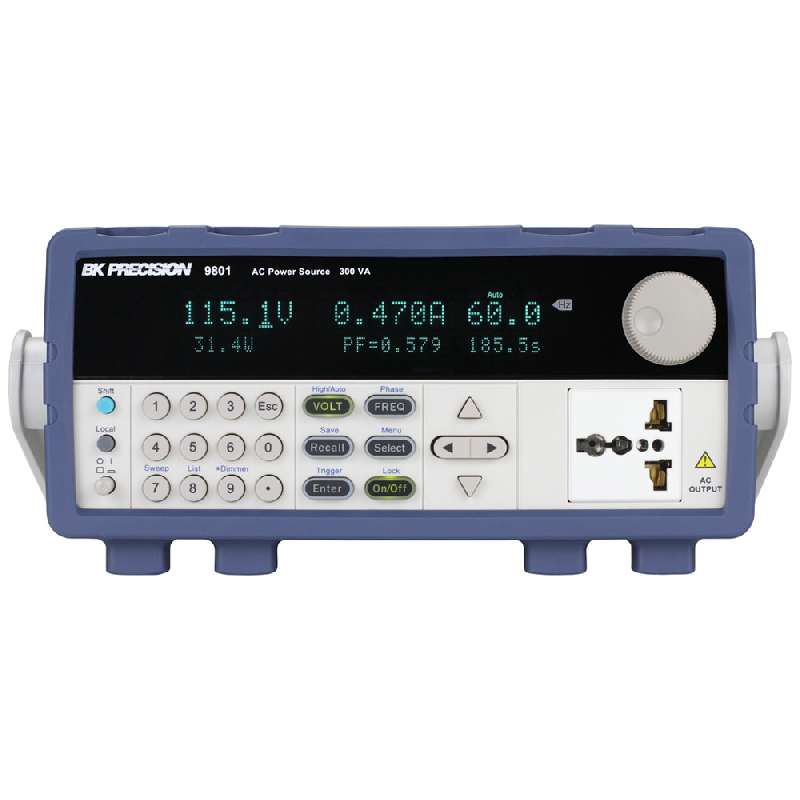

Benchtop Power Supply, Programmable, AC Power Source
Hisco #:9801-65699
MFG #:9801
$
Manufacturer Estimated Lead Time When Not In Stock: 7 days
Minimum Order QTY: 1
Item must be ordered in multiples of 1
Item must be ordered in multiples of 1
The BK Precision 9801 is a programmable AC power source and measurement tool in a compact benchtop package. Delivering up to 300VA through its universal line output terminal on the front and output connector on the rear.BK Precision 9801 Features:
- Provides a power line disturbance (PLD) simulator, list mode, and sweep mode for simulation of common power grid faults and disturbances
- Pre-compatible testing for voltage dips and frequency simulation according to IEC61000-4-11 / 4-14 / 4-28
- Downloadable LabVIEW driver and softpanel software for remote control, with standard USB (USBTMC compliant), RS232, and LAN interfaces
- Phase: Single
- Voltage: 110/220 VAC ± 10%
- Frequency: 47 – 63Hz
- Max Current: 8A
- Power Factor: 0.5 typical
- Memory: 10 Locations
- Dimensions: 8.45 x 3.47 x 17.83”
- Weight: 9.5lbs
Product Description
Technical Information
Back to top
Product Description
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
The BK Precision 9801 is a programmable AC power source and measurement tool in a compact benchtop package. Delivering up to 300VA through its universal line output terminal on the front and output connector on the rear.BK Precision 9801 Features:
- Provides a power line disturbance (PLD) simulator, list mode, and sweep mode for simulation of common power grid faults and disturbances
- Pre-compatible testing for voltage dips and frequency simulation according to IEC61000-4-11 / 4-14 / 4-28
- Downloadable LabVIEW driver and softpanel software for remote control, with standard USB (USBTMC compliant), RS232, and LAN interfaces
- Phase: Single
- Voltage: 110/220 VAC ± 10%
- Frequency: 47 – 63Hz
- Max Current: 8A
- Power Factor: 0.5 typical
- Memory: 10 Locations
- Dimensions: 8.45 x 3.47 x 17.83”
- Weight: 9.5lbs
Technical Information
Brand: BK Precision
Weight: 20.94
Country Of Origin: CN
Harmonized Code: 8504.40.7018
UPC Code: 817050980103
$
