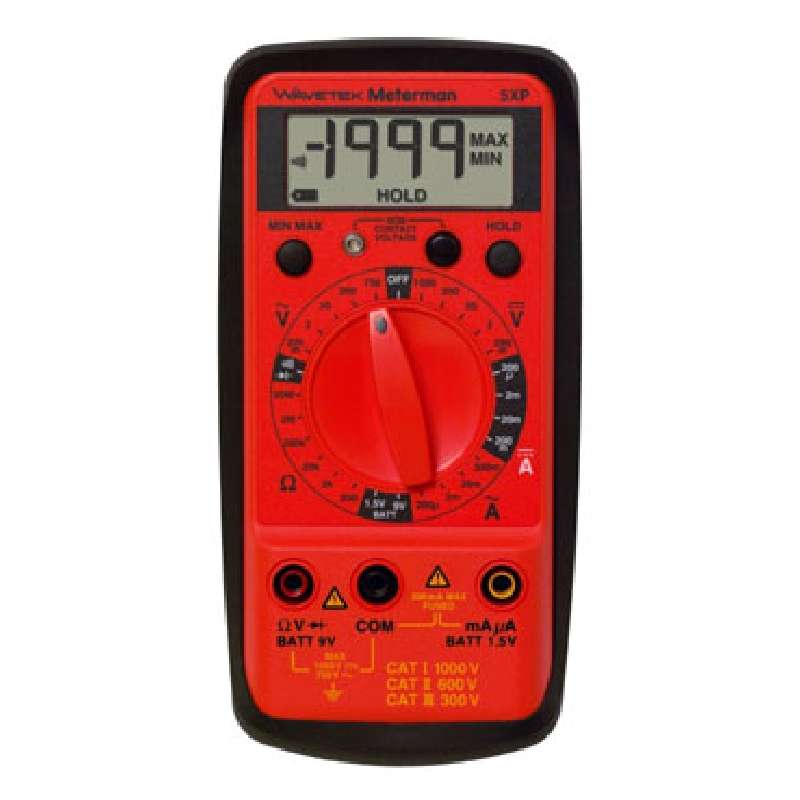

Full Purpose Compact Digital Multimeter with Non-Contact Voltage Detection
Hisco #:5XP-A-19816
MFG #:5XP-A
$
Manufacturer Estimated Lead Time When Not In Stock: 11 days
Minimum Order QTY: 1
Item must be ordered in multiples of 1
Item must be ordered in multiples of 1
The Amprobe 5XP-A is a digital multimeter with a minimum ac current measurement of 200.
The Amprobe 5XP-A Features:- 27 ranges/1 functions
- Battery load test with 1.5 V and 9 V capabilities
- MinMax record minimum and maximum values
- Triple safety rating
- Product Type: Digital Multimeter
- Functions Measured: AC Voltage DC Voltage Resistance AC Current DC Current Continuity Diode Check
- Display Type: LCD
- Power Source: Battery
- Maximum AC Current Measurement: 200mA
- Minimum AC Current Measurement: 200µA
- Maximum AC Voltage Measurement: 750V
- Minimum AC Voltage Measurement: 200mV
- Maximum DC Current Measurement: 200mA
- Minimum DC Current Measurement: 200µA
- Maximum DC Voltage Measurement: 1000V
- Minimum DC Voltage Measurement: 200mV
- Maximum Resistance Measurement: 200kΩ
- Minimum Resistance Measurement: 200Ω
- Best AC Current Accuracy: ±2%
- Best AC Voltage Accuracy: ±1.5%
- Best DC Current Accuracy: ±1.5%
- Best DC Voltage Accuracy: ±1%
- Best Resistance Measurement Accuracy: ±2%
- AC Current Measurement Resolution: 0.1µA
- AC Voltage Measurement Resolution: 100µV
- DC Current Measurement Resolution: 0.1µA
- DC Voltage Measurement Resolution: 100µV
- Resistance Measurement Resolution: 100mΩ
- Battery Type: 9 V Battery
- Safety Category: CAT I 1000 V CAT II 600 V CAT III 300 V
- Dimensions: 6.1 x 2.8 x 1.3in
- Safety Category Level: CAT I CAT II CAT III
- Width: 2.8in
- Minimum Operating Temperature: 0°C
- Height: 1.3in
- Length: 6.1in
- Model Number: 5XP-A
- Maximum Operating Temperature: +50°C
- Safety Category Voltage: 1000 300 600V
Product Description
Technical Information
Back to top
Product Description
The Amprobe 5XP-A is a digital multimeter with a minimum ac current measurement of 200.
The Amprobe 5XP-A Features:- 27 ranges/1 functions
- Battery load test with 1.5 V and 9 V capabilities
- MinMax record minimum and maximum values
- Triple safety rating
- Product Type: Digital Multimeter
- Functions Measured: AC Voltage DC Voltage Resistance AC Current DC Current Continuity Diode Check
- Display Type: LCD
- Power Source: Battery
- Maximum AC Current Measurement: 200mA
- Minimum AC Current Measurement: 200µA
- Maximum AC Voltage Measurement: 750V
- Minimum AC Voltage Measurement: 200mV
- Maximum DC Current Measurement: 200mA
- Minimum DC Current Measurement: 200µA
- Maximum DC Voltage Measurement: 1000V
- Minimum DC Voltage Measurement: 200mV
- Maximum Resistance Measurement: 200kΩ
- Minimum Resistance Measurement: 200Ω
- Best AC Current Accuracy: ±2%
- Best AC Voltage Accuracy: ±1.5%
- Best DC Current Accuracy: ±1.5%
- Best DC Voltage Accuracy: ±1%
- Best Resistance Measurement Accuracy: ±2%
- AC Current Measurement Resolution: 0.1µA
- AC Voltage Measurement Resolution: 100µV
- DC Current Measurement Resolution: 0.1µA
- DC Voltage Measurement Resolution: 100µV
- Resistance Measurement Resolution: 100mΩ
- Battery Type: 9 V Battery
- Safety Category: CAT I 1000 V CAT II 600 V CAT III 300 V
- Dimensions: 6.1 x 2.8 x 1.3in
- Safety Category Level: CAT I CAT II CAT III
- Width: 2.8in
- Minimum Operating Temperature: 0°C
- Height: 1.3in
- Length: 6.1in
- Model Number: 5XP-A
- Maximum Operating Temperature: +50°C
- Safety Category Voltage: 1000 300 600V
Technical Information
Brand: Amprobe
Availability: In Stock
Weight: 0.74
Country Of Origin: TW
Harmonized Code: 9030.31.0000
UPC Code: 095969365444
$
