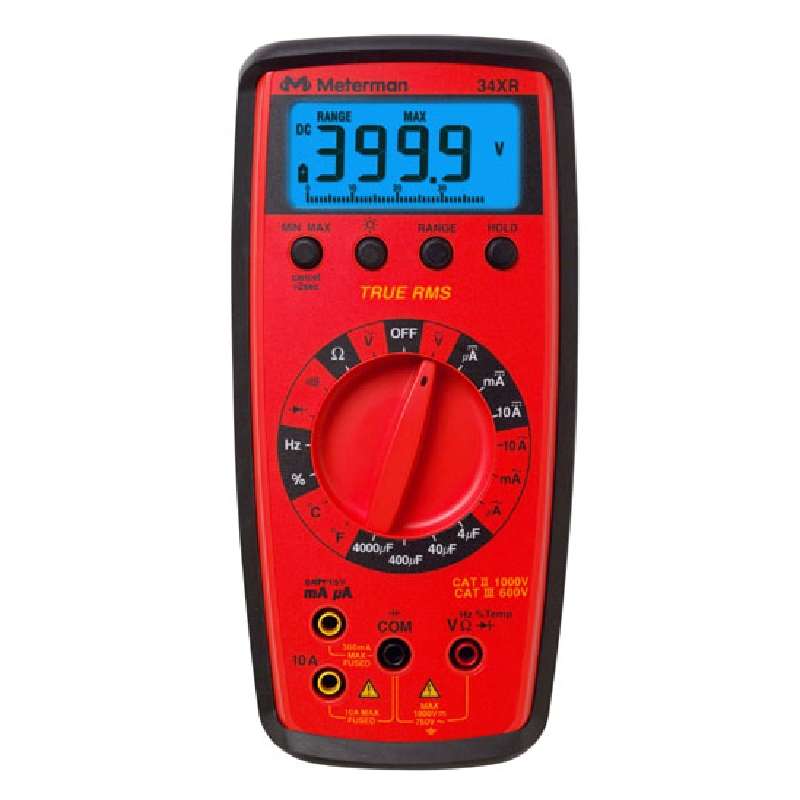

True RMS Digital Multimeter with Backlight and Temperature
Hisco #:34XR-A-19816
MFG #:34XR-A
$
Manufacturer Estimated Lead Time When Not In Stock: 7 days
Minimum Order QTY: 1
Item must be ordered in multiples of 1
Item must be ordered in multiples of 1
The Amprobe 34XR-A is a digital multimeter with a minimum ac current measurement of 400.
The Amprobe 34XR-A Features:- Autoranging display: 3-3/4 digit LCD, 3999 counts with 41-segment analog bar graph
- Display update rate: 2/sec, nominal
- True-rms digital multimeter with temperature and backlight
- Over range indication
- Auto power off to save battery life
- Min/max, data hold and range lock
- Separate door for easy battery and fuse access
- Magne-Grip™ Holster with magnetic hanging strap
- Product Type: Digital Multimeter
- Functions Measured: AC Voltage DC Voltage Resistance Capacitance AC Current DC Current Frequency Duty Cycle Continuity Temperature
- Display Type: LCD
- Power Source: Battery
- Maximum AC Current Measurement: 10A
- Minimum AC Current Measurement: 400mA
- Maximum AC Voltage Measurement: 750V
- Minimum AC Voltage Measurement: 400mV
- Maximum DC Current Measurement: 10A
- Minimum DC Current Measurement: 400µA
- Maximum DC Voltage Measurement: 1000V
- Minimum DC Voltage Measurement: 400mV
- Maximum Resistance Measurement: 40MΩ
- Minimum Resistance Measurement: 400Ω
- Maximum Temperature Measurement: +1832°F
- Minimum Temperature Measurement: -4°F
- Maximum Capacitance Measurement: 4000µF
- Minimum Capacitance Measurement: 4µF
- Best AC Current Accuracy: ±2.5%
- Best AC Voltage Accuracy: ±2%
- Best DC Current Accuracy: ±2%
- Best DC Voltage Accuracy: ±0.5%
- Best Resistance Measurement Accuracy: ±2%
- Best Temperature Measurement Accuracy: ±3%
- Best Capacitance Measurement Accuracy: ±5%
- AC Current Measurement Resolution: 0.1µA
- AC Voltage Measurement Resolution: 100µV
- DC Current Measurement Resolution: 0.1µA
- DC Voltage Measurement Resolution: 100µV
- Temperature Measurement Resolution: 1°F
- Resistance Measurement Resolution: 100mΩ
- Capacitance Resolution: 1nF
- Battery Type: 9 V Battery
- Safety Category: CAT III 600 V CAT II 1000 V
- Dimensions: 7.75 x 3.55 x 2.4in
- Safety Category Level: CAT III CAT II
- Width: 3.55in
- Minimum Operating Temperature: 0°C
- Height: 2.4in
- Length: 7.75in
- Model Number: 34XR-A
- Maximum Operating Temperature: +50°C
- Safety Category Voltage: 1000 600V
Product Description
Technical Information
Parts & Accessories
Back to top
Product Description
The Amprobe 34XR-A is a digital multimeter with a minimum ac current measurement of 400.
The Amprobe 34XR-A Features:- Autoranging display: 3-3/4 digit LCD, 3999 counts with 41-segment analog bar graph
- Display update rate: 2/sec, nominal
- True-rms digital multimeter with temperature and backlight
- Over range indication
- Auto power off to save battery life
- Min/max, data hold and range lock
- Separate door for easy battery and fuse access
- Magne-Grip™ Holster with magnetic hanging strap
- Product Type: Digital Multimeter
- Functions Measured: AC Voltage DC Voltage Resistance Capacitance AC Current DC Current Frequency Duty Cycle Continuity Temperature
- Display Type: LCD
- Power Source: Battery
- Maximum AC Current Measurement: 10A
- Minimum AC Current Measurement: 400mA
- Maximum AC Voltage Measurement: 750V
- Minimum AC Voltage Measurement: 400mV
- Maximum DC Current Measurement: 10A
- Minimum DC Current Measurement: 400µA
- Maximum DC Voltage Measurement: 1000V
- Minimum DC Voltage Measurement: 400mV
- Maximum Resistance Measurement: 40MΩ
- Minimum Resistance Measurement: 400Ω
- Maximum Temperature Measurement: +1832°F
- Minimum Temperature Measurement: -4°F
- Maximum Capacitance Measurement: 4000µF
- Minimum Capacitance Measurement: 4µF
- Best AC Current Accuracy: ±2.5%
- Best AC Voltage Accuracy: ±2%
- Best DC Current Accuracy: ±2%
- Best DC Voltage Accuracy: ±0.5%
- Best Resistance Measurement Accuracy: ±2%
- Best Temperature Measurement Accuracy: ±3%
- Best Capacitance Measurement Accuracy: ±5%
- AC Current Measurement Resolution: 0.1µA
- AC Voltage Measurement Resolution: 100µV
- DC Current Measurement Resolution: 0.1µA
- DC Voltage Measurement Resolution: 100µV
- Temperature Measurement Resolution: 1°F
- Resistance Measurement Resolution: 100mΩ
- Capacitance Resolution: 1nF
- Battery Type: 9 V Battery
- Safety Category: CAT III 600 V CAT II 1000 V
- Dimensions: 7.75 x 3.55 x 2.4in
- Safety Category Level: CAT III CAT II
- Width: 3.55in
- Minimum Operating Temperature: 0°C
- Height: 2.4in
- Length: 7.75in
- Model Number: 34XR-A
- Maximum Operating Temperature: +50°C
- Safety Category Voltage: 1000 600V
Technical Information
Brand: Amprobe
Availability: In Stock
Weight: 0.74
Country Of Origin: TW
Harmonized Code: 9030.31.0000
UPC Code: 095969365383
$
