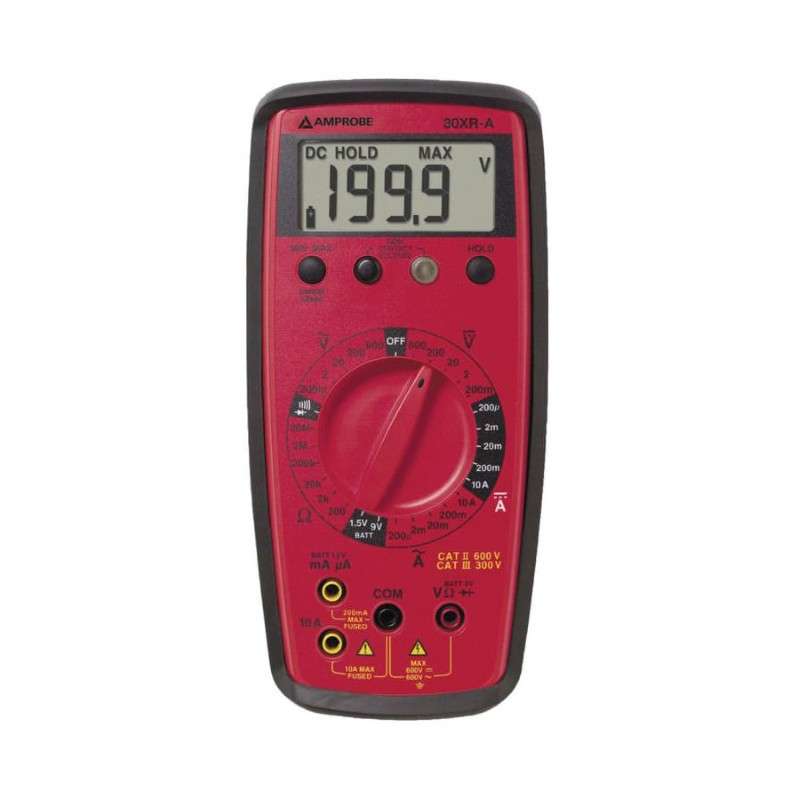

Manual Ranging Digital Multimeter with Non-Contact Volt Tester
Hisco #:30XR-A-19816
MFG #:30XR-A
$
Manufacturer Estimated Lead Time When Not In Stock: 6 days
Minimum Order QTY: 1
Item must be ordered in multiples of 1
Item must be ordered in multiples of 1
The Amprobe 30XR-A is a digital multimeter with a minimum ac current measurement of 200.
The Amprobe 30XR-A Features:- Non-contact voltage detector
- Separate door for easy battery and fuse access
- Manual ranging
- Display: 3-1/2 digit LCD, 1999 counts
- Display update rate: 2.5/sec, nominal
- Power battery 9V NEDA 164, JIS 6P, IEC 6F22
- Low battery indication
- Over range indication
- Min/max and data Hold
- Product Type: Digital Multimeter
- Functions Measured: AC Voltage DC Voltage Resistance AC Current DC Current Continuity Diode Check
- Display Type: LCD
- Power Source: Battery
- Maximum AC Current Measurement: 10A
- Minimum AC Current Measurement: 200mA
- Maximum AC Voltage Measurement: 600V
- Minimum AC Voltage Measurement: 200mV
- Maximum DC Current Measurement: 2A
- Minimum DC Current Measurement: 200µA
- Maximum DC Voltage Measurement: 600V
- Minimum DC Voltage Measurement: 200mV
- Maximum Resistance Measurement: 20MΩ
- Minimum Resistance Measurement: 200Ω
- Best AC Current Accuracy: ±2.5%
- Best AC Voltage Accuracy: ±1.5%
- Best DC Current Accuracy: ±2%
- Best DC Voltage Accuracy: ±1%
- Best Resistance Measurement Accuracy: ±2%
- AC Current Measurement Resolution: 0.1µA
- AC Voltage Measurement Resolution: 100µV
- DC Current Measurement Resolution: 0.1µA
- DC Voltage Measurement Resolution: 100µV
- Resistance Measurement Resolution: 100mΩ
- Battery Type: 9 V Battery
- Safety Category: CAT II 600 V CAT III 300 V
- Dimensions: 7.7 x 3.5 x 2.4in
- Safety Category Level: CAT III CAT II
- Width: 3.5in
- Minimum Operating Temperature: 0°C
- Height: 2.4in
- Length: 7.7in
- Model Number: 30XR-A
- Maximum Operating Temperature: +45°C
- Safety Category Voltage: 300 600V
Product Description
Technical Information
SDS/TDS
Parts & Accessories
Back to top
Product Description
The Amprobe 30XR-A is a digital multimeter with a minimum ac current measurement of 200.
The Amprobe 30XR-A Features:- Non-contact voltage detector
- Separate door for easy battery and fuse access
- Manual ranging
- Display: 3-1/2 digit LCD, 1999 counts
- Display update rate: 2.5/sec, nominal
- Power battery 9V NEDA 164, JIS 6P, IEC 6F22
- Low battery indication
- Over range indication
- Min/max and data Hold
- Product Type: Digital Multimeter
- Functions Measured: AC Voltage DC Voltage Resistance AC Current DC Current Continuity Diode Check
- Display Type: LCD
- Power Source: Battery
- Maximum AC Current Measurement: 10A
- Minimum AC Current Measurement: 200mA
- Maximum AC Voltage Measurement: 600V
- Minimum AC Voltage Measurement: 200mV
- Maximum DC Current Measurement: 2A
- Minimum DC Current Measurement: 200µA
- Maximum DC Voltage Measurement: 600V
- Minimum DC Voltage Measurement: 200mV
- Maximum Resistance Measurement: 20MΩ
- Minimum Resistance Measurement: 200Ω
- Best AC Current Accuracy: ±2.5%
- Best AC Voltage Accuracy: ±1.5%
- Best DC Current Accuracy: ±2%
- Best DC Voltage Accuracy: ±1%
- Best Resistance Measurement Accuracy: ±2%
- AC Current Measurement Resolution: 0.1µA
- AC Voltage Measurement Resolution: 100µV
- DC Current Measurement Resolution: 0.1µA
- DC Voltage Measurement Resolution: 100µV
- Resistance Measurement Resolution: 100mΩ
- Battery Type: 9 V Battery
- Safety Category: CAT II 600 V CAT III 300 V
- Dimensions: 7.7 x 3.5 x 2.4in
- Safety Category Level: CAT III CAT II
- Width: 3.5in
- Minimum Operating Temperature: 0°C
- Height: 2.4in
- Length: 7.7in
- Model Number: 30XR-A
- Maximum Operating Temperature: +45°C
- Safety Category Voltage: 300 600V
Technical Information
Brand: Amprobe
Availability: In Stock
Weight: 0.74
Country Of Origin: TW
Harmonized Code: 9030.31.0000
UPC Code: 095969365369
