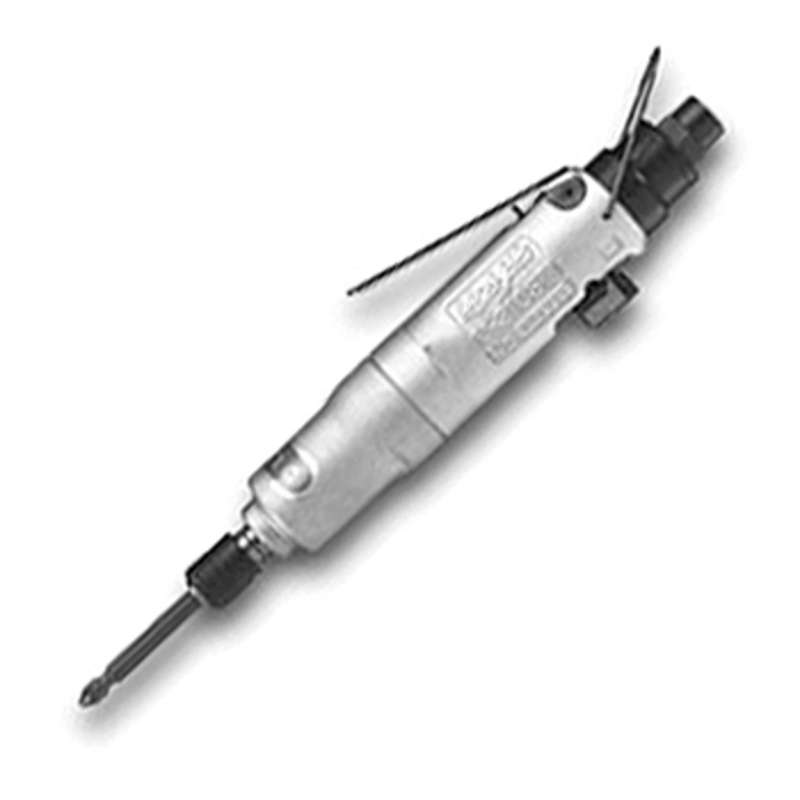

U Series Inline Non-Shutoff 1/4" Hex Drive Pneumatic Torque Driver 1.8-2.2 ft-lbs 11,000 RPM

The Aimco U-310SD is a Series U non-shut-off hex drive with a maximum speed of 11000.

• Ideal for low resistance fastening applications
• The u series contains a single high-pressure chamber and driving blade for transferring hydraulic pressure against the anvil
• Includes 1/4 in hex quick-change chuck
• Productivity
• High speed rundown reduces fastening time
• One hand operation frees the other for productive use
• Ergonomic benefits reduce fatigue and increase productivity
• Ergonomics
• Inline tool style prevents improper wrist extension for vertical applications
• Virtually no reaction impulse during and after fastener rundown
• Fast rundown reduces operator exposure
• High power to weight ratio
• Lube-free operation
• Low vibration and sound levels due to absence of metal-to-metal contact
• Reliability
• No mechanical clutch or hard part engagement for low maintenance and longer life
• No air line lubrication with oil-free rotor blades
• Quality
• Built-in torque adjuster matches each application for required torque and fastening time
• Extremely accurate on properly designed joints
• Excellent clamp force repeatability
• Monitoring available for process verification
• No oil film on finished work piece with oil-free rotor blades
• Recommended air pressure: 85 psi


• Brand: Acra-Pulse®
• Series: U
• Product Type: Pneumatic Torque Driver
• Drive Size: 1/4in
• Drive Shape: Hex
• Clutch Type: Non Shut-Off
• Maximum Speed: 11000rpm
• Minimum Torque: 1.8ft.lb
• Maximum Torque: 2.2ft.lb
• Reversible (Yes/No): No
• Handle Style: Inline
• Air Pressure: 85psi
• Inlet Size: 1/4in
• Air Consumption: 5.3cfm
• Noise Level: 74dB
• Overall Length: 8.7in
