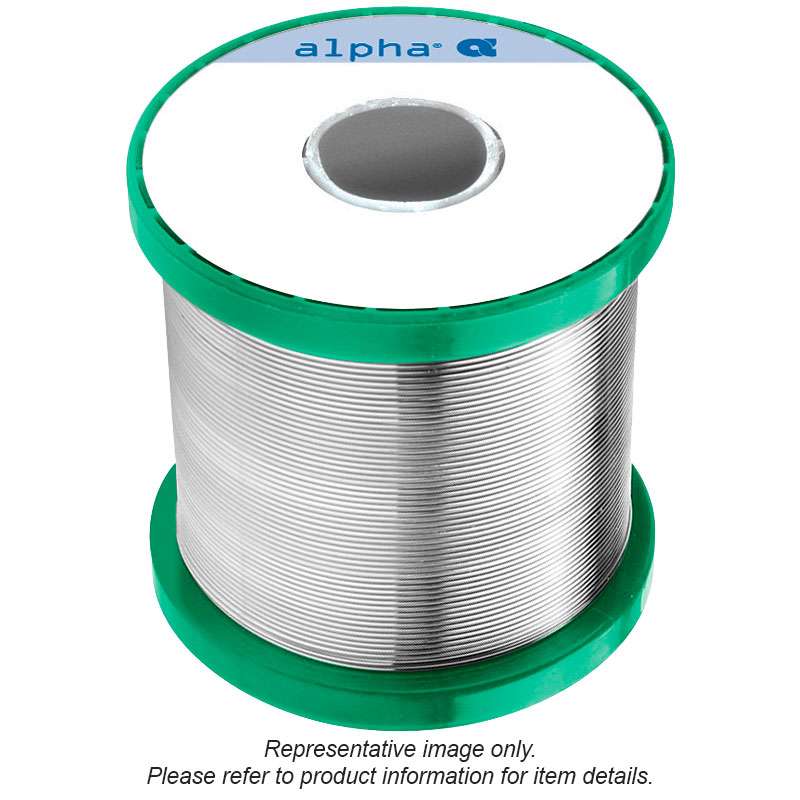

Telecore Plus No-Clean Solder Wire, P3, .032", SAC305, 1lb Spool
Hisco #:143089-1998
MFG #:143089
$
Manufacturer Estimated Lead Time When Not In Stock: 39 days
Minimum Order QTY: 1
Item must be ordered in multiples of 1
Item must be ordered in multiples of 1
The ALPHA 143089 is a low residue core solder designed for no-clean soldering applications that meet high SIR reliability and excellent spread characteristics. The unique blend of rosin and proprietary activators provide rapid wetting while leaving minimal, optically clear, completely inert residue.
The ALPHA 143089 Features:- No Clean, Activated Rosin Flux Conforming to J-STD-004 ROL0
- Bellcore Compliant
- Clear, Tack-Free, Non-Corrosive Residues, High SIR
- Series: Telecore Plus
- Product Type: Cored Solder Wire
- Wire Diameter: 0.03in
- Chemical Composition: Sn96.5Ag3.0Cu0.5
- Flux Type: No Clean
- Maximum Melting Temperature: +221°C
- Minimum Melting Temperature: +217°C
- Color: Silver Gray
- Primary Color: Gray
- Container Type: Spool
- Container Size: 1lb
- Applications: Commercial No-Clean Hand Soldering
- Standards Met: ROL0 per IPC J-STD-004 ISO 12224 - 1.1.2, Bellcore Compliant TR-NWT-000078, J-STD-006B
Product Description
Technical Information
SDS/TDS
Back to top
Product Description
The ALPHA 143089 is a low residue core solder designed for no-clean soldering applications that meet high SIR reliability and excellent spread characteristics. The unique blend of rosin and proprietary activators provide rapid wetting while leaving minimal, optically clear, completely inert residue.
The ALPHA 143089 Features:- No Clean, Activated Rosin Flux Conforming to J-STD-004 ROL0
- Bellcore Compliant
- Clear, Tack-Free, Non-Corrosive Residues, High SIR
- Series: Telecore Plus
- Product Type: Cored Solder Wire
- Wire Diameter: 0.03in
- Chemical Composition: Sn96.5Ag3.0Cu0.5
- Flux Type: No Clean
- Maximum Melting Temperature: +221°C
- Minimum Melting Temperature: +217°C
- Color: Silver Gray
- Primary Color: Gray
- Container Type: Spool
- Container Size: 1lb
- Applications: Commercial No-Clean Hand Soldering
- Standards Met: ROL0 per IPC J-STD-004 ISO 12224 - 1.1.2, Bellcore Compliant TR-NWT-000078, J-STD-006B
Technical Information
Brand: Alpha
Availability: In Stock
Weight: 1
Country Of Origin: MX
Harmonized Code: 7106.92.0100
UPC Code: No UPC
$
Minimum Order QTY: 1
Item must be ordered in multiples of 1
Item must be ordered in multiples of 1
