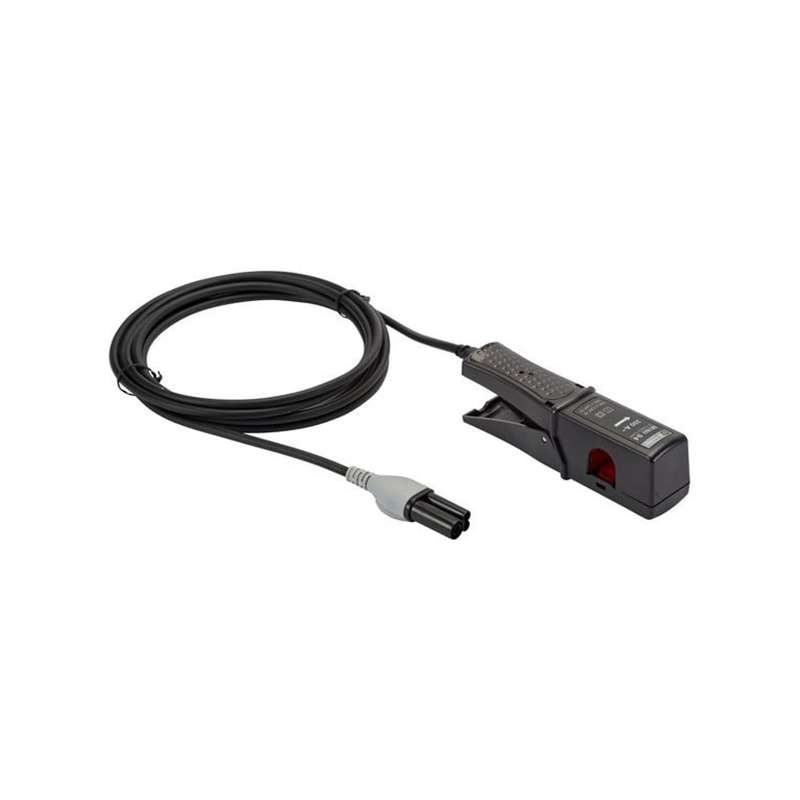

AC Current Probe Model, For Use Only with Models 8345 and PEL 52
Hisco #:MN94-65661
MFG #:MN94
Item must be ordered in multiples of 1
AEMC - MN94 AC Current Probe
Features and Specifications
- Maximum Conductor Size: 0.25 inch (16 mm)
- Current Range: 50 mA 200 AAC
- Frequency Range: (48 to 65) Hz
- Sensor length: 10 ft (3 m)
- Type A current sensor
- Double Insulated
- IP20 Ingress Protection (Ip)
- Equipped with a molded 4-pin connector
- Compatible with PowerPad IV 8345 And PEL 52
Small and compact, the MN94 clamp is a current clamp for measuring AC current without disconnecting the circuit to take measurements. It measures commercial power frequencies up to 200 A with a class 0.2 accuracy. Its excellent accuracy (gain and phase) make it ideal for current measurements with power and energy analyzers. In particular, it can be used to check electrical meters.
Product Description
AEMC - MN94 AC Current Probe
Features and Specifications
- Maximum Conductor Size: 0.25 inch (16 mm)
- Current Range: 50 mA 200 AAC
- Frequency Range: (48 to 65) Hz
- Sensor length: 10 ft (3 m)
- Type A current sensor
- Double Insulated
- IP20 Ingress Protection (Ip)
- Equipped with a molded 4-pin connector
- Compatible with PowerPad IV 8345 And PEL 52
Small and compact, the MN94 clamp is a current clamp for measuring AC current without disconnecting the circuit to take measurements. It measures commercial power frequencies up to 200 A with a class 0.2 accuracy. Its excellent accuracy (gain and phase) make it ideal for current measurements with power and energy analyzers. In particular, it can be used to check electrical meters.
Technical Information
Item must be ordered in multiples of 1
