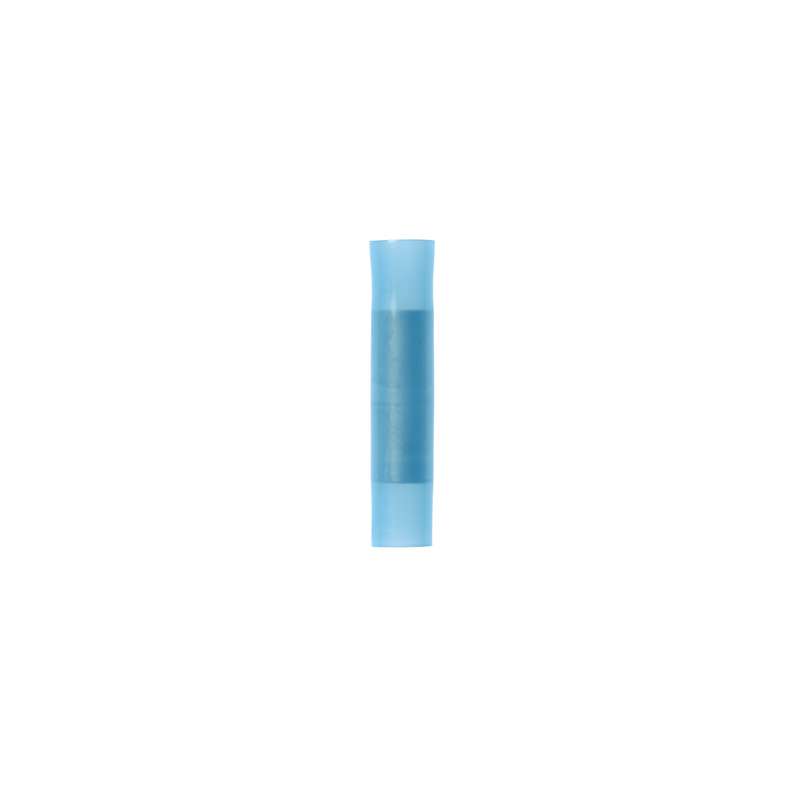

3M™ Butt Connector, Nylon Insulated Seamless 22-18 AWG, 94786, 61-SN-A
Hisco #:7010351112-31180
MFG #:7010351112
Item must be ordered in multiples of 10
This terminal has a wire range of 16-14 AWG and case quantities of 500 per case.
3M™ Butt Connectors are color-coded for quick and easy identification of the wire size required. The connector provides electrical connection to a pre-stripped end of a stranded wire. It has chamfered barrel ends that enable fast, simple wire insertion and allows for correct positioning with built-in wire stop. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
3M 7010351112 Features:- Built-in wire stop for correct positioning
- Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
- Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
- 600V-rated for building wire and 1000V for signs, fixtures or luminaires
- UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
- Connector Type: Butt
- Package Quantity: 10 LOOS
- Part Number: 94786-A 61-SN
Product Description
This terminal has a wire range of 16-14 AWG and case quantities of 500 per case.
3M™ Butt Connectors are color-coded for quick and easy identification of the wire size required. The connector provides electrical connection to a pre-stripped end of a stranded wire. It has chamfered barrel ends that enable fast, simple wire insertion and allows for correct positioning with built-in wire stop. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
3M 7010351112 Features:- Built-in wire stop for correct positioning
- Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
- Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
- 600V-rated for building wire and 1000V for signs, fixtures or luminaires
- UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
- Connector Type: Butt
- Package Quantity: 10 LOOS
- Part Number: 94786-A 61-SN
Technical Information
Item must be ordered in multiples of 10
